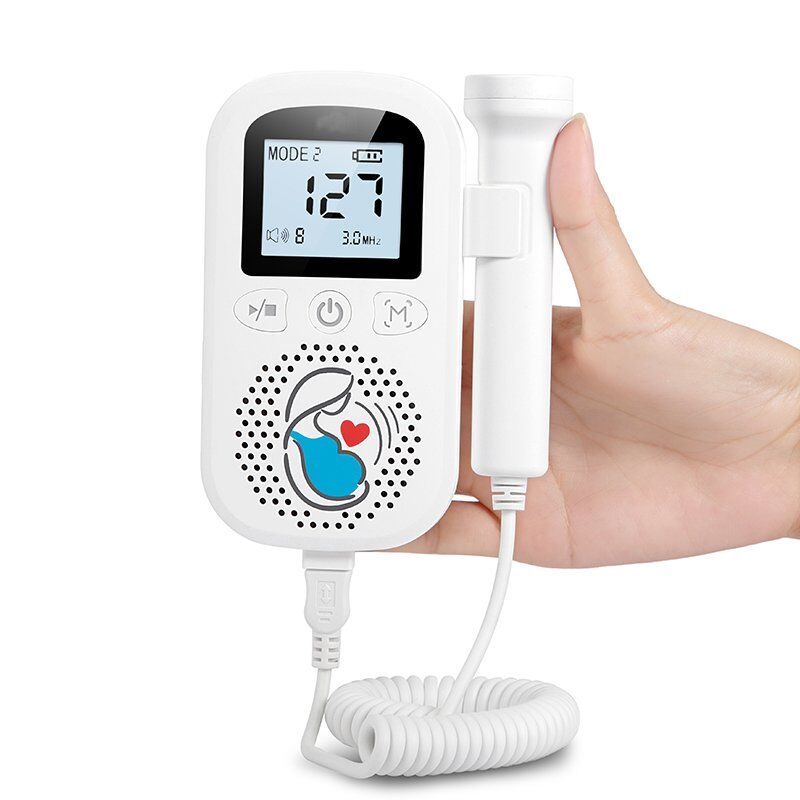

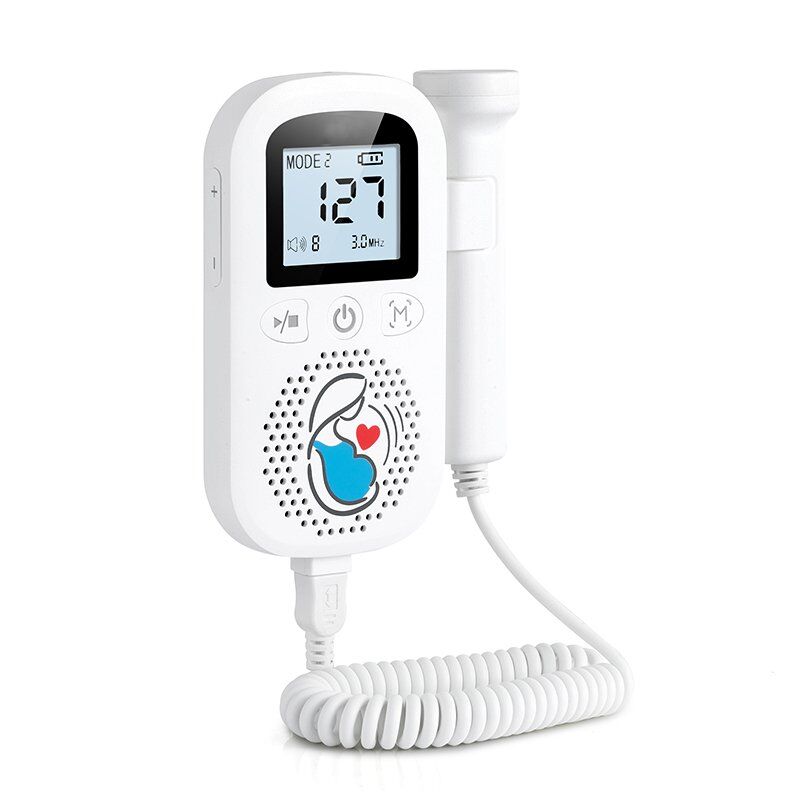

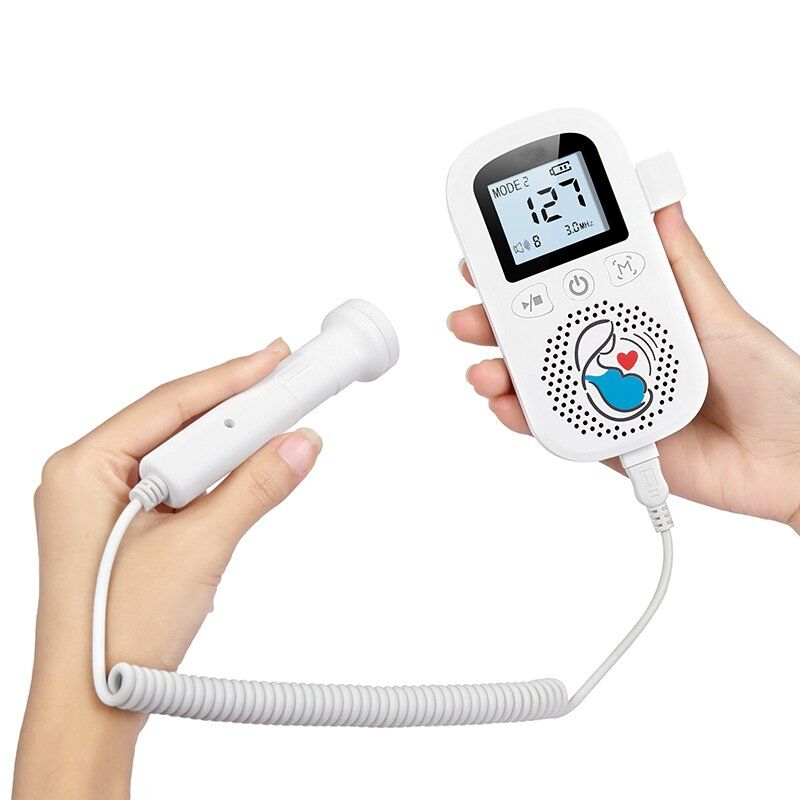

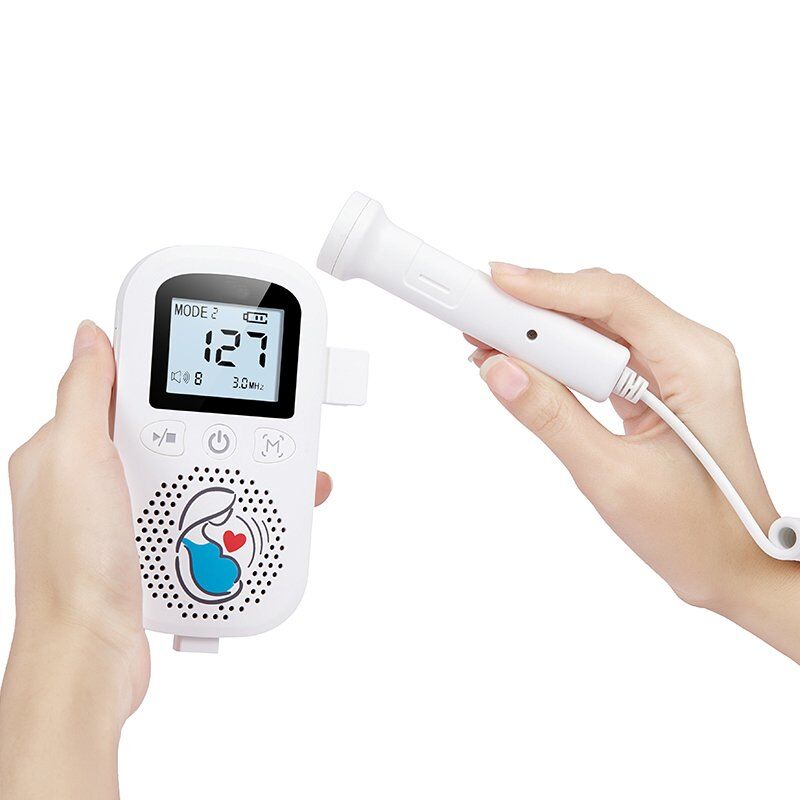

Ultrasound Doppler Fetal Heart Rate Monitor

Security, No radiation, 3.0MHz, Long term of life

Description

Product name Ultrasound Doppler Fetal Heart Rate Monitor
Working frequency 3MHz±15%
Measuring range 50~210bpm
Measurement accuracy ±2BPM
Resolution 1BPM
Space peak time peak sound pressure <0.1MPa
Output ultrasonic power <20mW

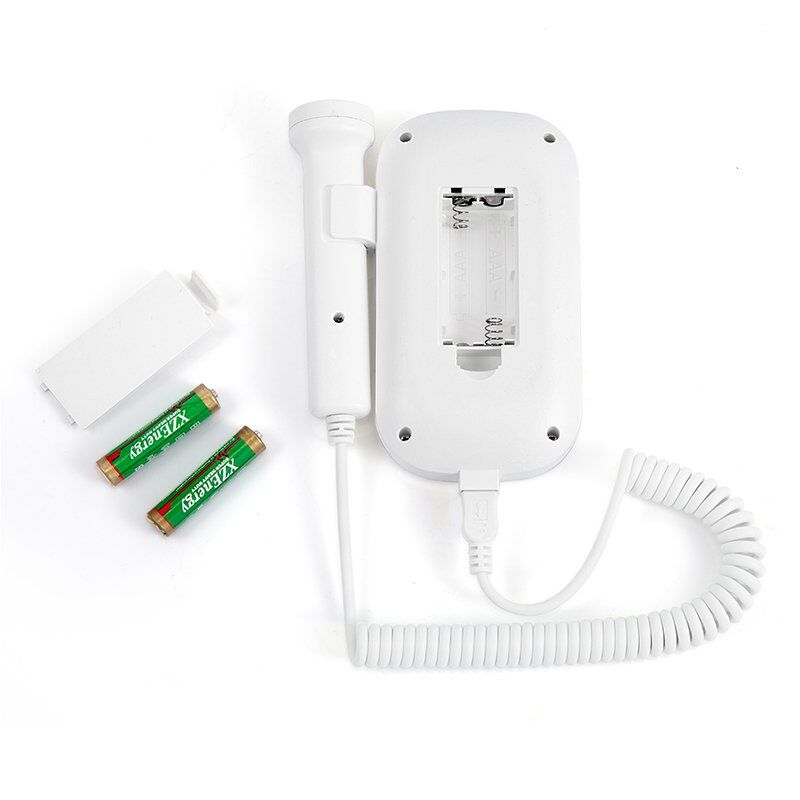

power supply DC3V(Two 1. 5V AAA alkaline batteries)
Product size 129X90X23mm
working environment Temperature: 10-40°C / Humidity: 15%-80%
Atmospheric pressure: 80kpa-105kpa
Storage and  transportation environment Temperature:-20~+55℃  / Humidity:≤93%
Atmospheric pressure: 80kPa-105kPa

Additional information

Weight 1 kg
Dimensions 10 × 5 × 15 cm
Model

FD102

Color

White & Black

Working Frequency

3MHz

Power Supply

AAA Battery x 2

Certification

CE

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn
Share on pinterest
Pinterest
Share on whatsapp
WhatsApp
Share on email
Email

Detail of Ultrasound Doppler Fetal Heart Rate Monitor

Product name Ultrasound Doppler Fetal Heart Rate Monitor
Working frequency 3MHz±15%
Measuring range 50~210bpm
Measurement accuracy ±2BPM
Resolution 1BPM
Space peak time peak sound pressure <0.1MPa
Output ultrasonic power <20mW
power supply DC3V(Two 1. 5V AAA alkaline batteries)
Product size 129X90X23mm
working environment Temperature: 10-40°C / Humidity: 15%-80%
Atmospheric pressure: 80kpa-105kpa
Storage and  transportation environment Temperature:-20~+55℃  / Humidity:≤93%
Atmospheric pressure: 80kPa-105kPa
